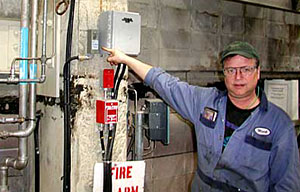

The small temperature controller located near the main controllers (where Mark is pointing), in conjunction with the outside thermostat found inside the roof-top units, control the recirculation dampers and the electric heating elements. | |||||||
The outside thermostat is set for about 60 degrees F. Below this set point the recirculation dampers open and the electric elements activate in three stages (30kw each) to maintain air temperature as set by the Room Recirculated Air Temperature Controller (pictured if you click on the image). This controller should not be adjusted above 9 degrees Celsius! |
|||||||
