The main parts of the
system to understand are:
- Heat Exchanger (Economizer)
- Bypass Duct and Dampers
- Recirculation Duct and Dampers
- Temperature Indicating Controllers
- Electric Heaters
- Filter Banks
- Spray Systems
- Supply and
exhaust Fans

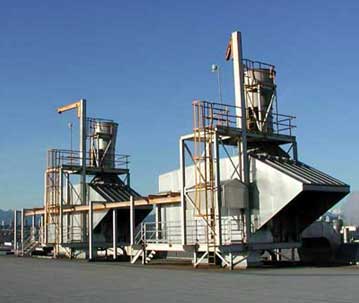

Building air make-up and heating
consists of two heat exchange units along with with their air distribution
ductwork or plenums.
Heat is transferred from the
#1 Machine hood exhaust into the supply air when required.
