The

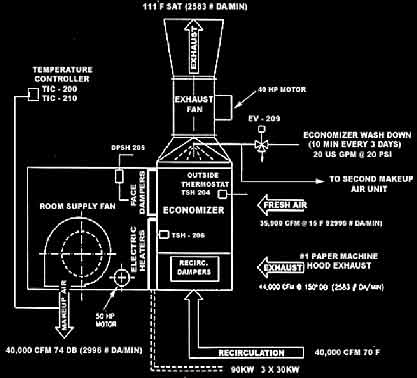

flow process sheet shows graphically the paths of the #1 P.M. hood exhaust
and the fresh air make-up, as well as temperatures and quantities.
Also of note are the locations of the electric heaters, the face dampers
and the timed economizer wash down sprays.
