particulate matter from the air
stream. The filter bank is provided
with a magnahelic gauge to
indicate the pressure drop over
the filters.

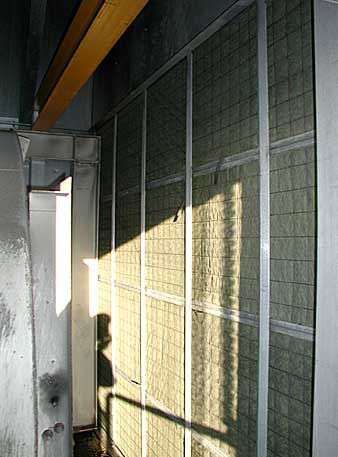

The filter bank for each unit
consists of 20 cells, 24” x 24”.The
cells are provided with 2” thick
fiberglass media pads. These pads
should be changed when the
pressure drop reaches 0.75”WC.
